Inicio /Productos/Cortina de aire industrial/Industrial Air Curtain with 2-Speed Fan 3 Minutes Delay and 5000 Hours Continuous Operation for Commercial Doors

Industrial Air Curtain with 2-Speed Fan 3 Minutes Delay and 5000 Hours Continuous Operation for Commercial Doors

20
MOQ
$299
Precio
Industrial Air Curtain with 2-Speed Fan 3 Minutes Delay and 5000 Hours Continuous Operation for Commercial Doors
Caracteristicas Galería Descripción de producto Pida una cita
Caracteristicas
Especificaciones
Tipo de montaje: Monte del techo
Rango de dimensiones: los 0.9-2m
Peso: 18 kg
Tipo de motores de ventilador: C.A.
tipo de cortina de aire: Tipo de flujo cruzado
Material: acero con el polvo cubierto
Tipo de calentador: Calentador PTC
Velocidad del ventilador: De 2 velocidades
Tipo de control: Botón+remoto
Voltaje: 220v ~50Hz / 380v ~50Hz
potencia del motor: <160W / <200W / <230W / <300W
Potencia del calentador: 6 / 4 /2 KW / 8 / 5 /3 KW / 10 / 7 /3 KW / 12 / 8 /4 KW
Velocidad del aire: 7,5-8,5 m/s
Volumen de aire: 1000 m3/h / 1500 m3/h / 1900 m3/h / 2400 m3/h
Operación continua: 5000 horas
Resaltar:

2-Speed Fan Air Curtain

,

3 Minutes Delay Industrial Air Curtain

,

5000 Hours Continuous Operation Commercial Door Curtain
Información básica
Lugar de origen: Guangdong, China
Nombre de la marca: Theodoor
Certificación: ce
Pago y Envío Términos
Descripción de producto
Air Barrier and Cortina De Ar at Size 3ft to 5ft for Commercial Door Curtains
Product Description

3G series hot air curtain for opening door with PTC electric heater for enhanced safety and performance.

  • Metal casing with painting, high fire resistance, compact construction and easy installation

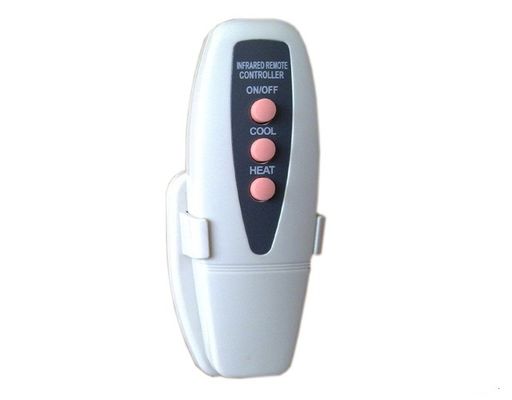

  • High and low speed with wireless remote control for versatile environment adaptation
  • 3-minute warm air delay with overheating protection for double safety
  • Creates temperature-differentiating air barrier to prevent cold draughts
  • Reliable motors capable of 5,000 hours continuous operation
  • Available in three power levels for flexible usage
Technical Specifications
MODEL Size (mm) Voltage (V ~ Hz) Motor Power (W) Heater Power (KW) Air Speed (M/S) Air Volume (m3/h)
RM-1209S-D/Y3G 900x195x265 220v ~50Hz <160 6 / 4 /2 7.5-8.5 1000
RM-1212S-D/Y3G 1200x195x265 220v ~50Hz <200 8 / 5 /3 7.5-8.5 1500
RM-1215S-D/Y3G 1500x195x265 220v ~50Hz <230 10 / 7 /3 7.5-8.5 1900
RM-1209S-3D/Y3G 900x195x265 380v ~50Hz <160 6 / 4 /2 7.5-8.5 1000
RM-1212S-3D/Y3G 1200x195x265 380v ~50Hz <200 8 / 5 /3 7.5-8.5 1500
RM-1215S-3D/Y3G 1500x195x265 380v ~50Hz <230 10 / 7 /3 7.5-8.5 1900
RM-1218S-3D/Y3G 1800x195x265 380v ~50Hz <300 12 / 8 /4 7.5-8.5 2400
Product Images

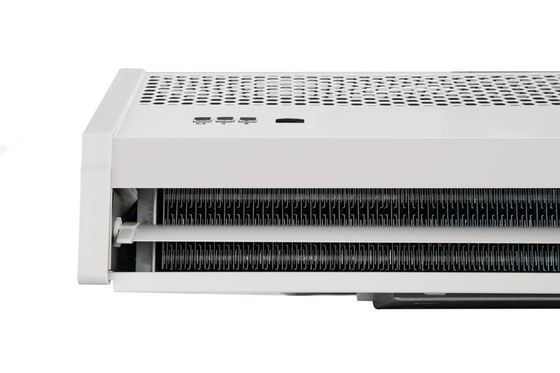

Industrial Air Curtain with 2-Speed Fan 3 Minutes Delay and 5000 Hours Continuous Operation for Commercial Doors 0

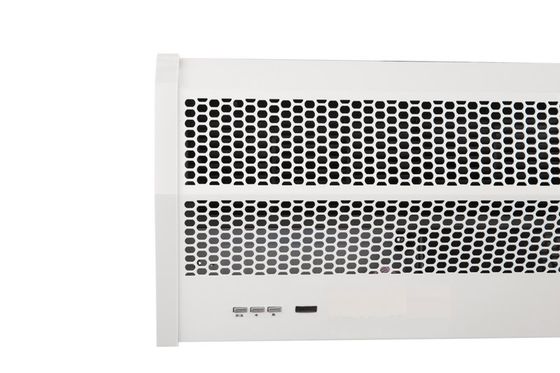

Industrial Air Curtain with 2-Speed Fan 3 Minutes Delay and 5000 Hours Continuous Operation for Commercial Doors 1

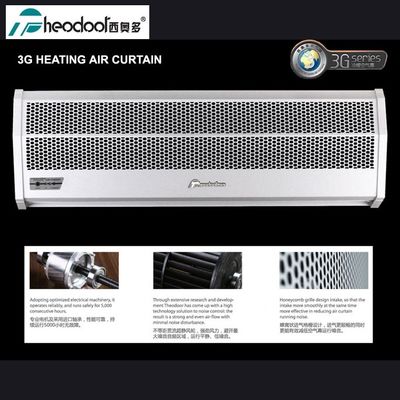

Industrial Air Curtain with 2-Speed Fan 3 Minutes Delay and 5000 Hours Continuous Operation for Commercial Doors 2
What is an Air Curtain?

Theodoor air curtains are installed above entryways of stores, restaurants, hotels and other commercial spaces. They effectively isolate indoor and outdoor environments, maintaining temperature and humidity levels while preventing dust, pests, and harmful fumes from entering.

Industrial Air Curtain with 2-Speed Fan 3 Minutes Delay and 5000 Hours Continuous Operation for Commercial Doors 3
Packaging & Shipping
Industrial Air Curtain with 2-Speed Fan 3 Minutes Delay and 5000 Hours Continuous Operation for Commercial Doors 4
Industrial Air Curtain with 2-Speed Fan 3 Minutes Delay and 5000 Hours Continuous Operation for Commercial Doors 5
Company Information

Professional air curtain manufacturer with extensive industry experience and certifications.

Industrial Air Curtain with 2-Speed Fan 3 Minutes Delay and 5000 Hours Continuous Operation for Commercial Doors 6
Industrial Air Curtain with 2-Speed Fan 3 Minutes Delay and 5000 Hours Continuous Operation for Commercial Doors 7
Industrial Air Curtain with 2-Speed Fan 3 Minutes Delay and 5000 Hours Continuous Operation for Commercial Doors 8
Industrial Air Curtain with 2-Speed Fan 3 Minutes Delay and 5000 Hours Continuous Operation for Commercial Doors 9
