Inicio /Productos/Cortina de aire industrial/Industrial Air Curtain with PTC Ceramic Heater 220v or 380v 50Hz for Energy Efficient Temperature Control

Industrial Air Curtain with PTC Ceramic Heater 220v or 380v 50Hz for Energy Efficient Temperature Control

100
MOQ
$199
Precio
Industrial Air Curtain with PTC Ceramic Heater 220v or 380v 50Hz for Energy Efficient Temperature Control
Caracteristicas Galería Descripción de producto Pida una cita
Caracteristicas
Especificaciones
Tipo de montaje: Soporte de pared / ventana
Peso: 15 kg
Tipo de motores de ventilador: C.A.
Longitud disponible: 60 cm, 90 cm, 100 cm, 120 cm, 150 cm, 180 cm, 200 cm
Potencia de calor: 3 kw, 4 kw, 5 kw, 6 kw, 8 kw, 10 kw, 12 kw
Voltaje/frecuencia: 220v o 380v /50Hz
Elemento calefactor: Calentador PTC
Control: Remoto+nalto
Materiales de la cubierta: Aluminio
potencia del motor: <160W, <200W, <230W, <300W
Velocidad del aire: 8,5-9,5 m/s
Volumen de aire: 1200 m3/h, 1700 m3/h, 2200 m3/h, 2700 m3/h
Nivel de ruido: 57 dB, 58 dB, 59 dB, 60 dB
Tamaño del producto: 900x190x260mm, 1200x190x260mm, 1500x190x260mm, 1800x190x260mm
Potencia del calentador: 6/4/2 kilovatios, 8/5/3 kilovatios, 10/7/3 kilovatios, 12/8/4 kilovatios
Resaltar:

PTC Ceramic Heater Air Curtain

,

220v or 380v Industrial Air Curtain

,

50Hz Heated Air Curtain
Información básica
Lugar de origen: Guangdong, China
Nombre de la marca: Theodoor
Pago y Envío Términos
Descripción de producto

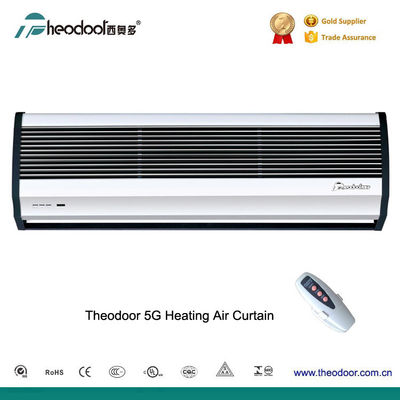

5G Series Air Heat Curtain with PTC Ceramic Heater
Theodoor heating air curtain creates an invisible air barrier that maintains clean, warm air for indoor environments.
Key Features
  1. PTC Heater - Safe operation with high power output creates temperature-differentiated air barriers to prevent cold airflow and ensure comfortable heating
  2. Dual airflow modes - Provides heating or normal air to effectively block cold draughts while maintaining interior comfort
  3. Adjustable speeds - High and low speed settings with wireless remote control for versatile environment adaptation
  4. Overheat protection - Built-in safeguards for both heater and motor ensure energy efficiency and protection during normal operation
  5. Safety delay - 30-second warm air delay after shutdown allows PTC heater to cool, extending product lifespan
Technical Specifications
Model Product Size (mm) Voltage (V ~ Hz) Motor Power (W) Heater Power (KW) Air Speed (M/S) Air Volume (m³/h) Net Weight (Kg) Noise Level (dB)
RM-1209S-D/Y5G 900x190x260 220v ~50Hz <160 6 / 4 /2 8.5-9.5 1200 13.5 57
RM-1212S-D/Y5G 1200x190x260 <200 8 / 5 /3 1700 16 58
RM-1215S-D/Y5G 1500x190x260 <230 10 / 7 /3 2200 18.5 59
RM-1209S-3D/Y5G 900x190x260 380v ~50Hz <160 6 / 4 /2 8.5-9.5 1200 13.5 57
RM-1212S-3D/Y5G 1200x190x260 <200 8 / 5 /3 1700 16 58
RM-1215S-3D/Y5G 1500x190x260 <230 10 / 7 /3 2200 18.5 59
RM-1218S-3D/Y5G 1800x190x260 <300 12 / 8 /4 2700 24 60

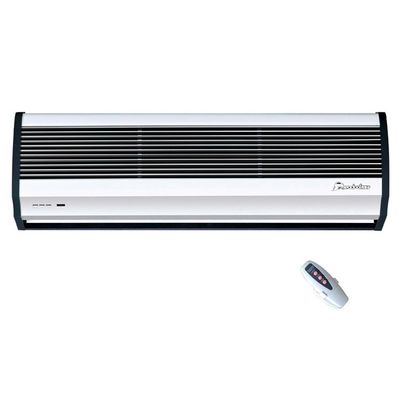

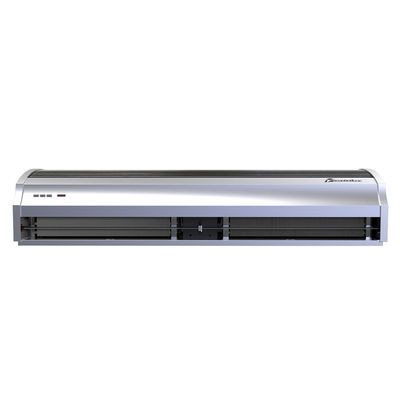

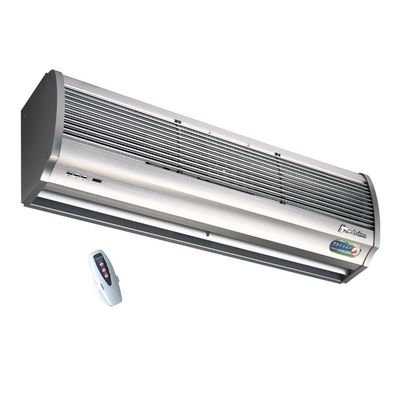

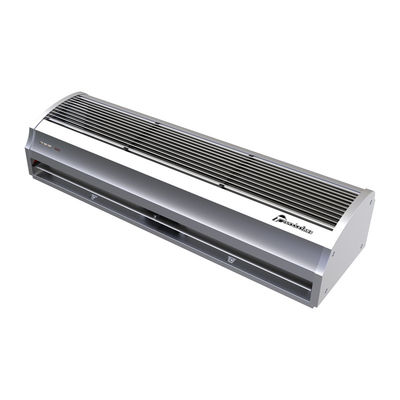

Industrial Air Curtain with PTC Ceramic Heater 220v or 380v 50Hz for Energy Efficient Temperature Control 0 Industrial Air Curtain with PTC Ceramic Heater 220v or 380v 50Hz for Energy Efficient Temperature Control 1 Industrial Air Curtain with PTC Ceramic Heater 220v or 380v 50Hz for Energy Efficient Temperature Control 2
What is an Air Curtain?

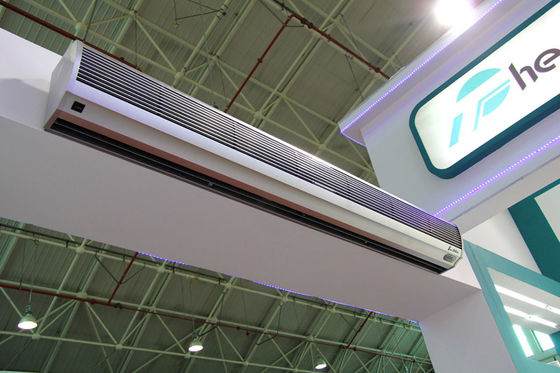

Theodoor air curtains are installed above entryways of stores, restaurants, hotels and other commercial spaces. They effectively isolate indoor and outdoor environments, maintaining temperature and humidity levels. Particularly effective when used with air conditioning systems, they preserve indoor climate conditions while reducing energy consumption. Air curtains also prevent infiltration of dust, pests, and harmful fumes from outside, creating a comfortable and clean indoor environment.
Industrial Air Curtain with PTC Ceramic Heater 220v or 380v 50Hz for Energy Efficient Temperature Control 3
Why Choose Our Air Curtains?
  • 22+ years experience in manufacturing and exporting air curtains with over 100 models for various environments
  • Professional engineering team dedicated to continuous research and development
  • Advanced technology using modern machinery to ensure product performance and reliability
  • Premium materials selected for safety, efficiency, energy conservation and environmental protection
  • Rigorous quality control with 100% product performance testing
  • Cost-effective solutions offering long-life, high-reliability products with superior performance
  • Responsive support with prompt attention to customer queries
Industrial Air Curtain with PTC Ceramic Heater 220v or 380v 50Hz for Energy Efficient Temperature Control 4 Industrial Air Curtain with PTC Ceramic Heater 220v or 380v 50Hz for Energy Efficient Temperature Control 5 Industrial Air Curtain with PTC Ceramic Heater 220v or 380v 50Hz for Energy Efficient Temperature Control 6 Industrial Air Curtain with PTC Ceramic Heater 220v or 380v 50Hz for Energy Efficient Temperature Control 7 Industrial Air Curtain with PTC Ceramic Heater 220v or 380v 50Hz for Energy Efficient Temperature Control 8
