Titan Series Stainless Steel 304 Air Curtain with 220-240/110V 50/60HZ and High Safety Level for Refrigerator Doors

50
MOQ
$299
Precio
Titan Series Stainless Steel 304 Air Curtain with 220-240/110V 50/60HZ and High Safety Level for Refrigerator Doors
Caracteristicas Galería Descripción de producto Pida una cita
Caracteristicas
Especificaciones
Voltaje de funcionamiento: 230 VAC
Tipo de montaje: Soporte de pared / ventana
Flujo de aire: 2000m³/h
Peso: 15 kg
Opciones de tamaño: 900, 1000, 1200, 1500, 1800, 2000 mm
Material de cubierta: Acero inoxidable 304
Tipo de ventilador: Ventilador de flujo cruzado
Fuente de alimentación: 220-240/110V 50/60Hz
Tipo de control: Botón+remoto
Potencia del motor: 140-350W
Volumen de aire: 840-3600m³/h
Velocidad del aire: 9-13m/s
Nivel de ruido: 54-61DB
Operación continua: 5000 horas
Seguridad del motor: Sobrecalentamiento del protector
Resaltar:

Stainless Steel 304 Air Curtain

,

220-240/110V 50/60HZ Air Curtain

,

High Safety Level Air Curtain

Información básica
Lugar de origen: Guangdong, China
Nombre de la marca: Theodoor
Pago y Envío Términos
Descripción de producto

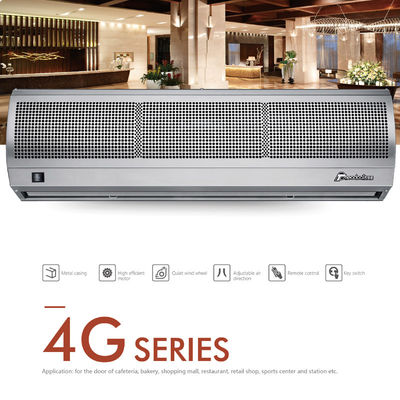

Titan Series Stainless Steel Air Curtain for Refrigerator Door
Key Features

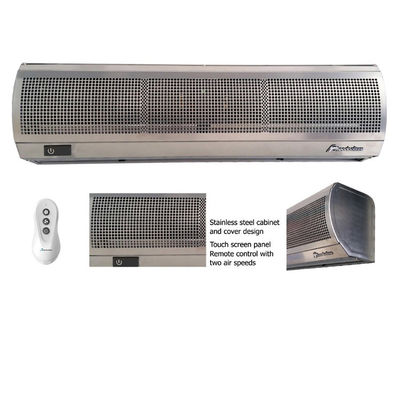

  • Compact design with stainless steel cover for easy installation and maintenance

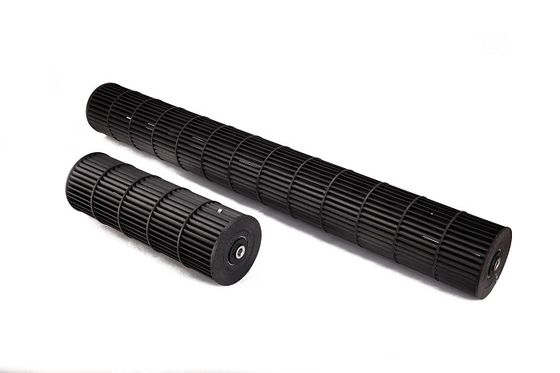

  • Optimized fan wheel provides stable, even airflow with large volume and low noise
  • Reliable motor design with overheating protector and 5000+ hours continuous operation

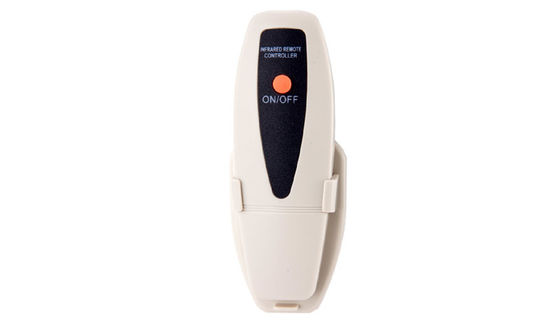

  • Remote control or switch operation with adjustable high/low air velocity
  • Available in two series with different air velocities (9-11m/s and 10-13m/s)
  • Ideal for cafeterias, bakeries, restaurants, retail shops, department stores, and sports centers
Titan Series Stainless Steel 304 Air Curtain with 220-240/110V 50/60HZ and High Safety Level for Refrigerator Doors 0
Titan Series Stainless Steel 304 Air Curtain with 220-240/110V 50/60HZ and High Safety Level for Refrigerator Doors 1
Technical Specifications
Model Size (mm) Volt./Freq. Motor Power (W) Air Volume (m³/h) Air Speed (m/s) Noise (dB) N.W (kg)
FM-1206SA1 600x180x215 220v~ 50Hz 140/90 840/680 9-11 55/54 8.5
FM-1209SA1 900x180x215 220v~ 50Hz 160/110 1400/1100 10-13 57/55 10.5
FM-1210SA1 1000x180x215 220v~ 50Hz 180/130 1600/1300 10-13 58/56 11.5
FM-1212SA1 1200x180x215 220v~ 50Hz 200/150 1900/1600 10-13 58/56 13.5
FM-1215SA1 1500x180x215 220v~ 50Hz 230/180 2500/2000 10-13 59/57 15
FM-1218SA1 1800x180x215 220v~ 50Hz 300/250 3200/2600 10-13 60/58 20
FM-1220SA1 2000x180x215 220v~ 50Hz 350/300 3600/2900 10-13 61/59 22
What is an Air Curtain?

Theodoor air curtains are installed above entryways of stores, restaurants, hotels, and other commercial spaces. They effectively isolate indoor and outdoor air convection to maintain temperature and humidity levels. Particularly useful in air-conditioned spaces, they help conserve energy for refrigeration equipment while preventing the intrusion of dust, pests, and harmful fumes from outside, maintaining a comfortable indoor environment.

Titan Series Stainless Steel 304 Air Curtain with 220-240/110V 50/60HZ and High Safety Level for Refrigerator Doors 2
Titan Series Stainless Steel 304 Air Curtain with 220-240/110V 50/60HZ and High Safety Level for Refrigerator Doors 3
Company Information
Precision Production

Founded in 2002, Theodoor is located in Guangzhou's Sino-Singapore Knowledge City (SSGKC) with a 30,000 square meter facility. Our modern production workshop utilizes advanced industrial equipment and testing instruments to ensure manufacturing precision and product reliability. We offer a full product series to meet customized demands across different countries and regions.

Innovation Technology

Theodoor maintains a national standard environmental simulation laboratory and air curtain endurance testing facility. With over 80 national invention patents, we lead industry quality and performance standards. Our products are certified to ISO9001, ISO14001, CCC, CE, CB, ROHS, ERP, UL, SASO, INMETRO, and SAA standards.

Titan Series Stainless Steel 304 Air Curtain with 220-240/110V 50/60HZ and High Safety Level for Refrigerator Doors 4
Titan Series Stainless Steel 304 Air Curtain with 220-240/110V 50/60HZ and High Safety Level for Refrigerator Doors 5
